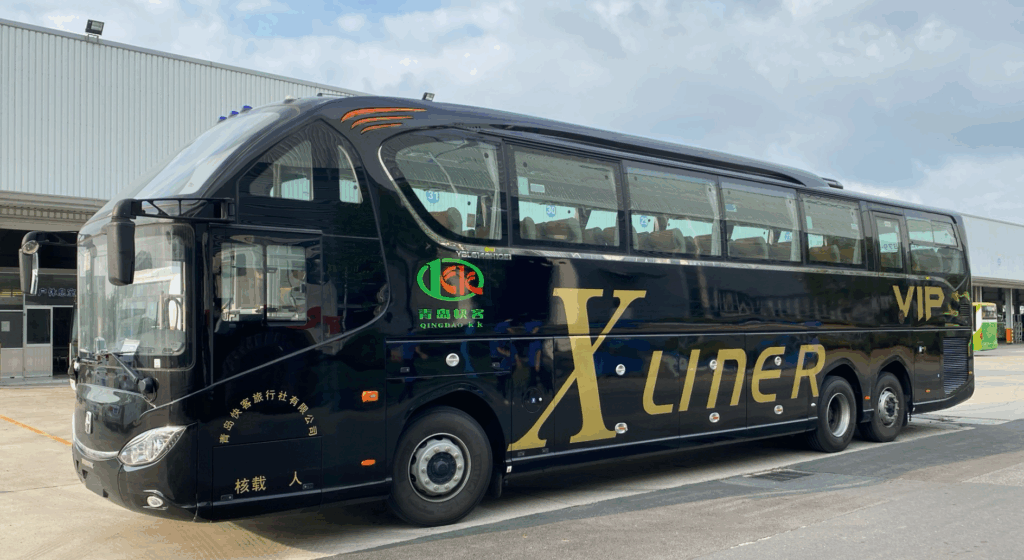

YBL6148H

基本参数Overall specification

Overall length(mm)总长

13680

发动机Engine

Engine model 发动机型号

WP12.375N

Overall width(mm)总宽

2550

Manufacture制造商

WEICHAI

Overall height(mm) 总高

3850

Engine position 发动机位置

REAR

Wheel base (mm)轴距

6500

Engine Type 类型

Diesel

F/R overhang(mm)前后悬

2550/6500/1500/3130

Rated power (kw/rpm)

额定功率

276/1900

Max G.V.W(kg)最大总质量

22000

Max torque(N.M/rpm)

最大扭距

1800/1000-1400

Seats 座位数

57+1+1

Displacement（L）排量

11.596

Max speed(km/h)最高车速

120km/h (without limiter)

Emission Standard 排放

EURO 3

item

standard

Option

1

发动机

Engine

WEICHAI WP12.375N, 375HP, EURO 3

潍柴WP12.375N,375hp,欧3发动机

2

油箱

Fuel tank

600L steel tank

600L钢制油箱

3

变速箱

Gearbox

FAST 6DS180T, three soft short axis operation, six-speed gearbox

法士特6DS180T，三软短轴操纵，六档箱

4

离合器

Clutch

Sachs Ф430 diaphragm spring clutch

萨克斯Ф430膜片弹簧离合器

5

前桥

Front axle

HANDE 6.5T, disc brake

汉德6.5T前桥，盘式制动

6

后桥

Rear axle

HANDE 13T, drum brake

汉德13T后桥，鼓式制动

7

随动桥

Following axle

DONGFENG DANA axle 7.5T, disc brake，without steering function

东风德纳7.5T, 盘式制动，不转向

8

制动系统

Brake system

Dual circuit air brake, front disc & rear drum+ following axle disc brake, energy storage spring parking brake

双回路气制动，前盘后鼓式制动,随动桥盘式制动，储能弹簧驻车制动

9

悬挂 Suspension

Air suspension, 2+4+2 airbags, with stabilizer bar

空气悬架，2+4+2气囊，带前后横向稳定杆

10

ECAS

No

无

11

转向

Steering

BOSCH 8098 power steering, right hand drive

BOSCH 8098动力转向，右驾

12

ABS

WABCO ABS

13

自动调整臂

Automatic Slack Adjuster

Yes

是

14

缓速器 Retarder

Telma Eddy current retarder DX2400

泰勒玛电涡流缓速器DX2400

15

集中润滑

Centralized lubrication

无

No

16

冷却系统 Cooling system

Mechanical fan

机械风扇

17

轮胎

Tire

GITI 295/80R22.5 Tubeless radial tire, normal wheel rim, one spare tire

佳通无内胎子午线轮胎295/80R22.5，普通钢圈，一个备胎

18

Wheel cover

轮罩

No

无

19

空调/电风扇

A/C/Fan

顶置空调35000kcal/h，比泽尔压缩机

Roof mounted 35000kcal/h A/C, Bitzer compressor

20

暖风

Heater

无

NO

21

除霜

Defroster

Defroster for front windshield

前档风除霜器

22

Passenger door/front door乘客门/前门

Pneumatic outward-swing door (with remote control)

电控气动外摆门（带遥控）

23

Passenger door/middle door

乘客门/中门

NO

无

24

Front/rear windshield

前后风窗

Front double windshield (Laminated glass) , rear toughened gray glass

前风窗（前夹层玻璃,前双风档），后挡风钢化玻璃

25

侧窗

Side window

Adhesive fully enclosed side windows (the last left and right side windows and the driver’s window are built-in sliding windows)

粘贴式全封闭侧窗（最后一扇左右侧窗及司机窗为内嵌式推拉窗）

26

乘客座椅

Passenger seat

55 seats, high backrest adjustable B1 type seats（adjust backrest, without lateral movement and pedal）USB charger for each seat, pocket for each seat,seat belt for every seat(3 point seat belts for front row 4 seats and 1 seat in the middle of rear row , other seats with two point seat belts)

55座高靠背可调节B1型座椅（靠背前后可调，不可横移，不带脚蹬），USB接口在座椅下，座椅后带布袋，全车座椅配安全带（前排4个座椅和最后一排中间1个座椅为三点式安全带，其余为两点式安全带）

27

驾驶员座椅

Driver seat

Front and rear adjustable, Air suspended driver’s seat. with three point seat belt

前后可调气浮式司机座椅, 带三点安全带

28

导游椅

Guider seat

Guider’s seat with three points seat belt

标配 (带三点式安全带）

29

车内照明

Interior lighting

双条形内顶灯  踏步、过道LED灯

Roof lamp, LED lamp for step and corridor

30

阅读灯 Reading lamp

Reading lamp

出风口带阅读灯（阅读灯对应每排座椅前部中间）

31

内饰

Interior

Normal inner trimming

普通空调内饰

32

内行李架

Inner luggage rack

Luxury inner luggage racks

X3型双边内行李架

33

行李仓

Luggage compartment

Monocoque girder structure, drive-through type luggage compartment

全承载桁架式结构，贯通式行李仓

34

Side luggage compartment door

侧行李仓门

Manual up-move luggage compartment door

全铝手动平移式行李仓门

35

Roof luggage rack

顶行李架

No

无

36

倒车镜

Rearview mirror

Electric exterior rearview mirror (with defrosting)

电动外后视镜（带除霜）

37

地板

Floor

Bamboo floor with normal floor leather

竹胶地板带普通地板革

38

视听播放设备

Audiovisual equipment

500G MP5, one wired microphone, 2 units 19 inch LCD（one fixed in the front of bus, one electric folding in the middle）

500G硬盘播放机（MP5）

1个有线麦克风， 2个19寸LCD显示器(前部为固定式，中部为电动折叠式)

39

电子钟

Clock

One digital clock

电子钟带温度计

40

饮水机 Dispenser

No

无

41

Fridge

冰箱

YES

有

42

卫生间

Toilet

No

无

43

安全出口

Emergency exit

Two emergency exits with electrical fan, no emergency door

2只带换气扇顶安全出口,无安全门

44

记录仪或GPS

Recorder or GPS

No

无

45

侧窗帘

Side curtain

cloth curtain

布质侧窗帘

46

司机遮阳帘

Driver sunshade

前档手动双幅遮阳帘，带司机窗卷阳帘

Manual front window sunshade (two units),rolling sunshade for driver window

47

护栏 Guardrails

Standard

标配（带导游靠背）

48

倒车监视器

Reversing Monitor

Colorful reversing monitor, 500G hard disk storage,4 Cameras

彩色倒车监视器（带车载监控系统，硬盘500G，另配4个摄像头）

49

机舱灭火装置

Fire Extinguisher

发动机仓自动灭火器

Fire extinguisher in engine compartment

50

CAN总线 CAN-bus

Normal instrument（without model）

普通仪表，无模块

51

智慧管理系统

Wisdom control system

No

无

52

漆种

Paints

Imported plain painting

进口素色漆

53

车身结构及蒙

Body structure and skin

Normal square Steel, all metal body, electrophoresis for body

普通方钢，全金属车身，整车电泳

54

特殊技术和配置

Special

Technology and Configures

1. Imported AMP plugs and imported relay

进口AMP接插件，进口继电器

2. Logo: ASIASTAR 品牌：亚星新商标

3. Mark: all labels and marks inside should be English

标牌：车内所有标识均为英文或中英文

4. 8 units of loudspeaker 8个扬声器
