SDEC GEN-SETS DATASHEET

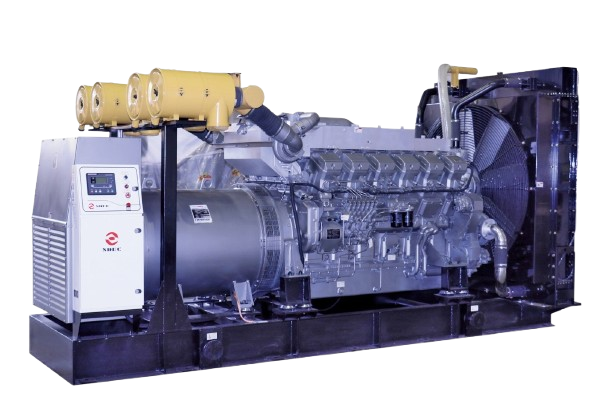

Land Based Genset-SD-SC675

Gen-set specifications
Model	SD-SC675
Standby Rating  kVA/kWe	743/594
Prime Rating  kVA/kWe	675/540
Voltage V	400/230
Frequency  Hz	50
Power Factor	0.8(lagging)
No. of Phases	3
Fuel consumption@25%/ 50% / 75%(L/h）75%(L/h）	43 / 74 / 102
Fuel consumption@100% / 110%（L/h）	139 / 153
Sound@1m（dB·(A)）	Open≤110 ; Silence ≤90
Emission level	Non-Road China Ⅱ
Ambient temp（℃）	-5～45
Gen-set regulation class	ISO 8528-5 G2
Steady-state voltage deviation	≤±2.5%
Transient voltage deviation （100%sudden power decrease/increase）	≤+25% ；≤-20%
Steady-state frequency band	≤1.5%
Gen-set regulation class	≤+12%；≤-10%





Standard
	u Electronic	u DC24 Electric starter	u SDEC6110N
	u Closed water-cooled	u IP22	u H type insulation
	u Air filter	u Metal bowl shock absorbers	u Circuit Breaker
	u Startingbatteries+connective wires+ Negative switch	u Radiator	u Charger
	u Oil Drain  plugs	uBase fuel tank and low noise forklift hole	u Random files
	u Color：Gray-black（open type）/white（low noise）
	u Packaging：Wound film packing



Options
	◇  Line Voltage380V/415V	◇  Line Voltage 440V/480V	◇  Voltage 6.3kV/10.5kV /13.8kV
	◇  Single Voltage 220V/230V	◇  Automatic Transfer Switch	◇  Automatic Parallel system
	◇  Engine Heater (water/fuel)	◇  Oil heating	◇  Alternator heater
	◇  External fuel tank（1000L）	◇  AREP	◇  PMG
	◇  Muffler	◇  Black smoke purification device	◇  Cloud monitoring



Engine



• SME R series, 6 cylinder, in-line 4 stroke, radiator cooled engine
• Well-designed air handling system with
• Dry type, Replaceable paper element air cleaner with restriction indicator
• Intercooler
• Optimized turbocharger for increased altitude capabilities
• Electronic governor
• Radiator
• Electrical starter motor with soft start engagement feature
• Intelligent fuel injection technology to start fast guarantee
• Battery charging alternator
• 2 x 12 V DC batteries

Alternator



• Brushless type, Screen protected, Revolving field, Self excited alternator conforming to IEC 60034-1
• Long-life sealed bearings Steel casing
• High efficiency
• Steel housing
• Single-bearing construction
• Protection grade IP22
• Insulation class H
• Automatic voltage regulator



Control Module Specifications

The SDEC6110N is an Auto Mains Failure Control Module

• Back-lit LCD display
• Detect speed, frequency, voltage, current, oil pressure, water temperature
• Warning and protection function, and display the reason for generator set alarm and shutdown
• Record operating hours, provide monitoring and maintenance information







Engine specifications
Make	SME
Mode	S6R2-PTA-C
Rated Speed r/min	1500
Prime Power kW	575
Overload Power kW	635
Cooling	Liquid cooled
Governor	Electronic
Aspiration	Turbo & Intercooler
No. of cylinders	6, In-line
Bore (mm) x Stroke (mm)	170*220
Displacement (L)	29.96
Starting system	24VDC
Total coolant capacity (L)	143
Total lubrication system capacity (L)	94
Cooling fan airflow（m³/min）	720
Exhaust Temperature (°C)	≤500
Recommended air flow @ PRP(m³/min)	47
Exhaust back pressure (mBar)	≤60
Radiator design temperature（℃）	40/50







Alternator specifications
Make	KAIJIELI
Alternator Frame	TWGⅡ354E1
Exciter Type	Exciter Type   Brushless self-excitation
Enclosure	IP22
Stable voltage state  rate	≤±1%
Class of Insulation	H
Winding Pitch	5/6
Connection	Single bearing





Remarks

Prime Rating: – For variable load applications, there is no limit to hours of use throughout the year. The average allowable output power of continuous operation for 24 hours shall not exceed 80% of the commonly used rated power.

Standard Conditions

Standby Rating: It can be used in the event of a power outage on the grid, or under test conditions, and the maximum annual use time is not more than 200 hours. The average allowable output power of 24 hours of continuous operation shall not exceed 80% of the standby rated power.

Note: Ambient temperature 25°C, altitude 1000m, relative humidity 30%. Fuel consumption rates are based on diesel density of 0.85 and according to BS2869: 1998, Class A2.



Gen-set  Dimensions
Gen-set Mode	Rated Power (kW)	Length (mm)	Width (mm)	Height (mm)	Wet Weight* (kg)	Standard Fuel tank Capacity(L)
SD-SC675	540	3575	1615	2090	5420	/
SD-SC675Y	540	3650	1615	2270	6200	600
SD-SC675S	540	5100	1950	2500	6950	800

*: Include coolant and oil.

Attention: This weight is the data for the standard configuration of the generator set. For weight information for other configurations, please refer to the relevant information in the unit outline drawing

Attention: Product parameters are subject to change without prior notice
