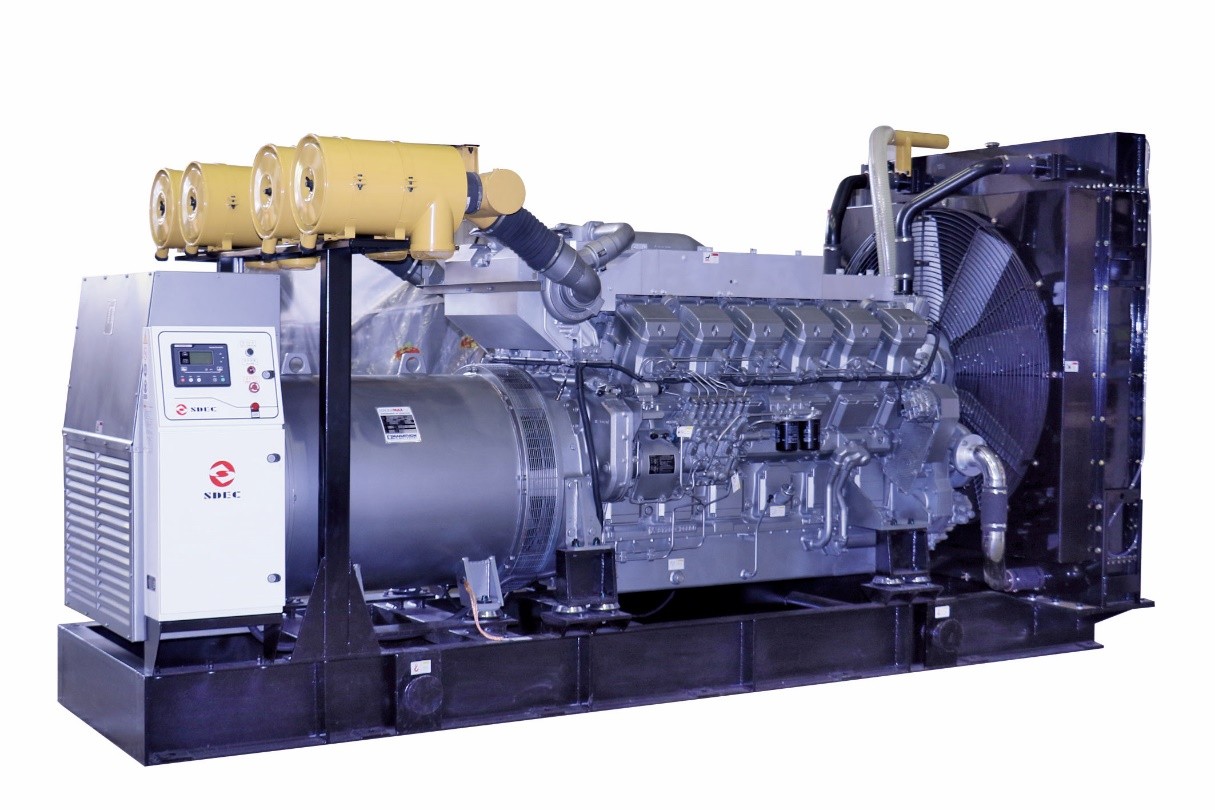

| Land Based Genset-SD-SC1500
|
| Gen-set specifications | |
| Model | SD-SC1500 |
| Standby Rating kVA/kWe | 1650/1320 |
| Prime Rating kVA/kWe | 1500/1200 |
| Voltage V | 400/230 |
| Frequency Hz | 50 |
| Power Factor | 0.8(lagging) |
| No. of Phases | 3 |
| Fuel consumption@25%/ 50% / 75%(L/h）75%(L/h） | 103 / 181 / 252 |
| Fuel consumption@100% / 110%（L/h） | 343 / 377 |
| Sound@1m（dB·(A)） | Open≤110 ; Silence ≤90 |
| Emission level | Non-Road China Ⅱ |
| Ambient temp（℃） | -5～45 |
| Gen-set regulation class | ISO 8528-5 G2 |
| Steady-state voltage deviation | ≤±2.5% |
| Transient voltage deviation （100%sudden power decrease/increase） | ≤+25% ；≤-20% |
| Steady-state frequency band | ≤1.5% |
| Gen-set regulation class | ≤+12%；≤-10% |
| Standard | |||
| u Electronic | u DC24 Electric starter | u SDEC6110N | |
| u Closed water-cooled | u IP22 | u H type insulation | |
| u Air filter | u Metal bowl shock absorbers | u Charger | |
| uStartingbatteries+connective wires+ Negative switch | u Radiator | u Oil Drain plugs | |
| u Packaging：Wound film packing | u Low noise container form | u Random files | |
| u Color：Gray-SME（open type）/ Gray（low noise） | u PMG | ||
| Options | |||
| ◇ Line Voltage380V/415V | ◇ Line Voltage 440V/480V | ◇ Voltage 6.3kV/10.5kV /13.8kV | |
| ◇ Single Voltage 220V/230V | ◇ Automatic Transfer Switch | ◇ Automatic Parallel system | |
| ◇ Engine Heater (water/fuel) | ◇ Oil heating | ◇ Alternator heater | |
| ◇ Circuit Breaker | ◇ AREP | ◇ Cloud monitoring | |
| ◇ External fuel tank（1000L） | ◇ Muffler | ◇ Black smoke purification device | |
| Engine |
| Alternator |
| Control Module Specifications |
| Engine specifications | |
| Make | SME |
| Mode | S12R-PTAA2-C |
| Rated Speed r/min | 1500 |
| Prime Power kW | 1277 |
| Overload Power kW | 1404 |
| Cooling | Liquid cooled |
| Governor | Electronic |
| Aspiration | Turbo & Intercooler |
| No. of cylinders | 12、60°V |
| Bore (mm) x Stroke (mm) | 170*180 |
| Displacement (L) | 49.03 |
| Starting system | 24VDC |
| Total coolant capacity (L) | 325 |
| Total lubrication system capacity (L) | 180 |
| Cooling fan airflow（m³/min） | 1800 |
| Exhaust Temperature (°C) | ≤520 |
| Recommended air flow @ PRP(m³/min) | 118 |
| Exhaust back pressure (mBar) | ≤60 |
| Radiator design temperature（℃） | 40/50 |
| Alternator specifications | |
| Make | KAIJIELI |
| Alternator Frame | TWGⅡ404HC1 |
| Exciter Type | PMG |
| Enclosure | IP23 |
| Stable voltage state rate | ≤±1% |
| Class of Insulation | H |
| Winding Pitch | 5/6 |
| Connection | Single bearing |
| Remarks |
Prime Rating: – For variable load applications, there is no limit to hours of use throughout the year. The average allowable output power of continuous operation for 24 hours shall not exceed 80% of the commonly used rated power.
| Standard Conditions |
Standby Rating: It can be used in the event of a power outage on the grid, or under test conditions, and the maximum annual use time is not more than 200 hours. The average allowable output power of 24 hours of continuous operation shall not exceed 80% of the standby rated power.
Note: Ambient temperature 25°C, altitude 1000m, relative humidity 30%. Fuel consumption rates are based on diesel density of 0.85 and according to BS2869: 1998, Class A2.
| Gen-set Dimensions | ||||||
| Gen-set Mode | Rated Power (kW) | Length
(mm) |
Width
(mm) |
Height
(mm) |
Wet Weight*
(kg) |
Standard Fuel tank Capacity(L) |
| SD-SC1500 | 1200 | 5120 | 2202 | 2556 | 12000 | / |
| SD-SC1500S | 1200 | 9000 | 2438 | 2896 | 19000 | 1000 |
*: Include coolant and oil.
Attention: This weight is the data for the standard configuration of the generator set. For weight information for other configurations, please refer to the relevant information in the unit outline drawing
Attention: Product parameters are subject to change without prior notice
